Traffic Signal controller Instruction

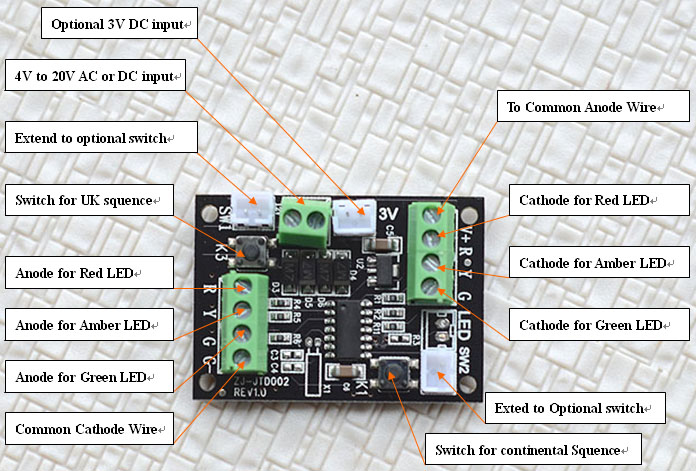

1. single direction ( one way opposite 2 directions )

when press the K1 switch or press the momentary switch to the SW2,

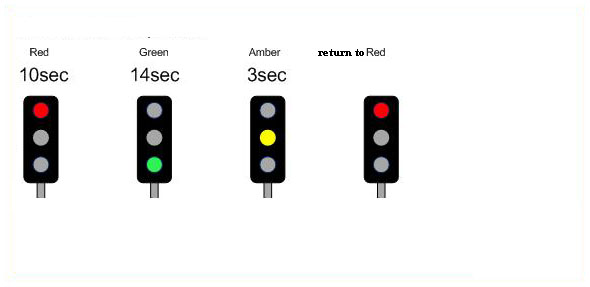

 the signals will be lighted up by the following continental sequence.

=======================================================================

when press the K3 switch or press the momentary switch to the SW1,

 the signals will be lighted up by the following UK sequence.

 please follow the wiring within the photos, no further instruction paper.

it works for 2 ways signals only ( western + eastern OR southern + northern ), not 4 ways signals

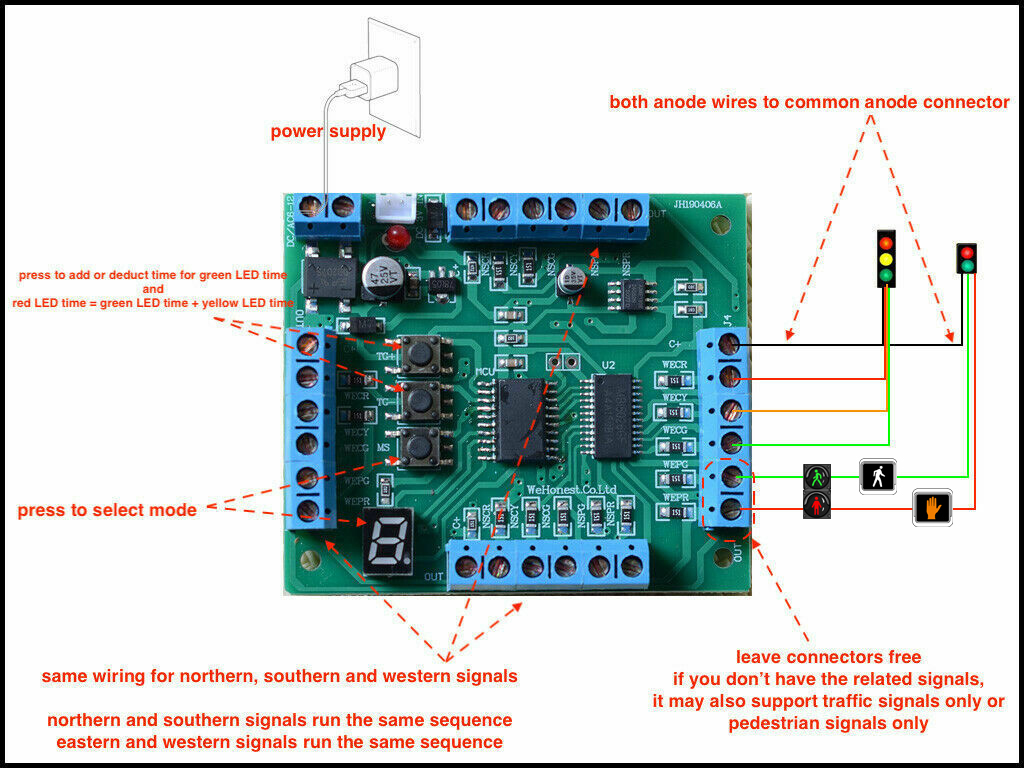

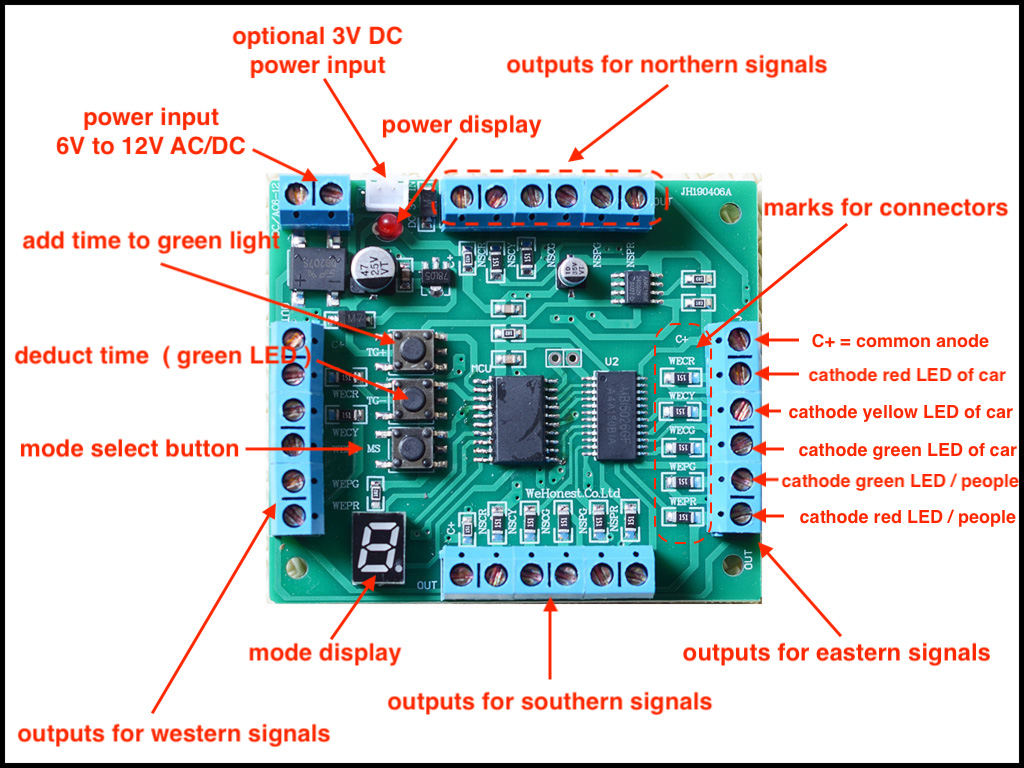

2. controller with pedestrian control

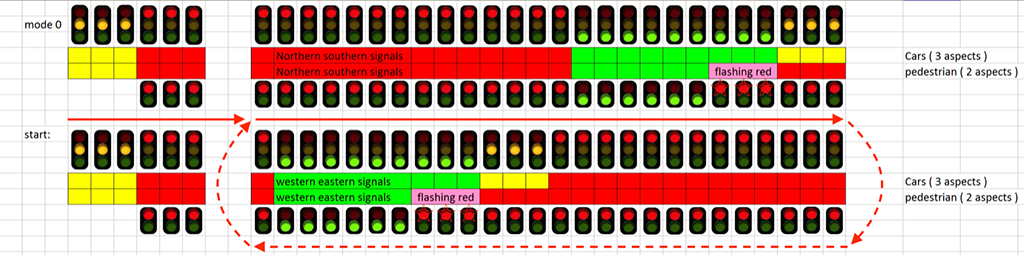

traffic lights and pedestrian signals of 4 directions work synchronously

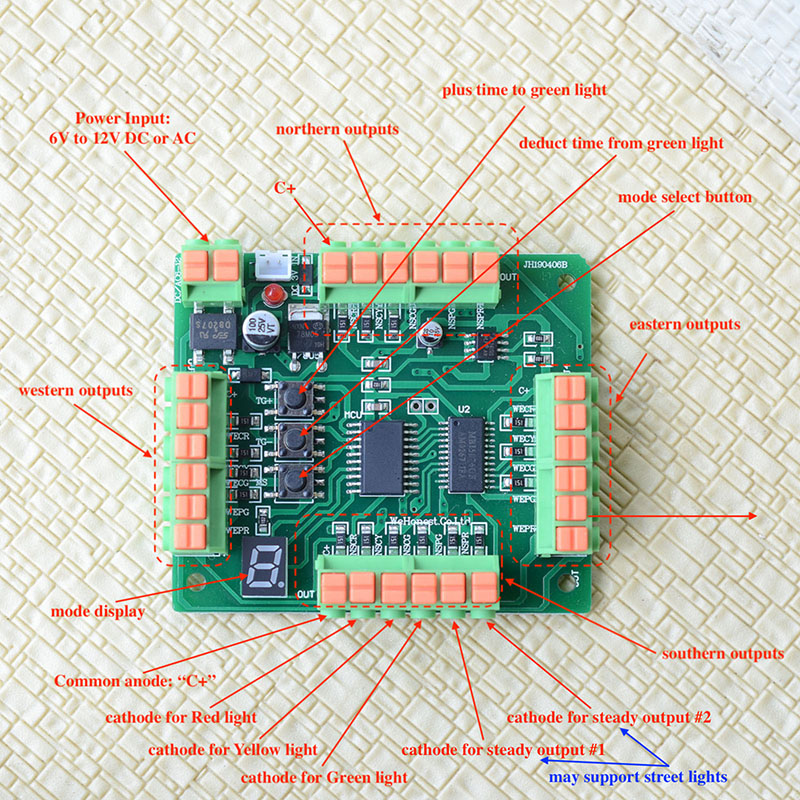

3. traffic signal controller only ( screw free )

to control them manually, you may use normal switches
