1 x HO scale model 4 head searchlight offset Distant / Intermediate signal #4OF

1 x HO scale model 4 head searchlight offset Distant / Intermediate signal #4OF

0 review(s) | Write a review
Product Code: WH404366170016
Availability: 100

overview

price for 1 complete signal ( common anode )tri-colors SMD LEDs made4 targets, each target may show Red/Amber/Green light.4 wires for each target, the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after pay...
$27.43
BUY AT AMAZON

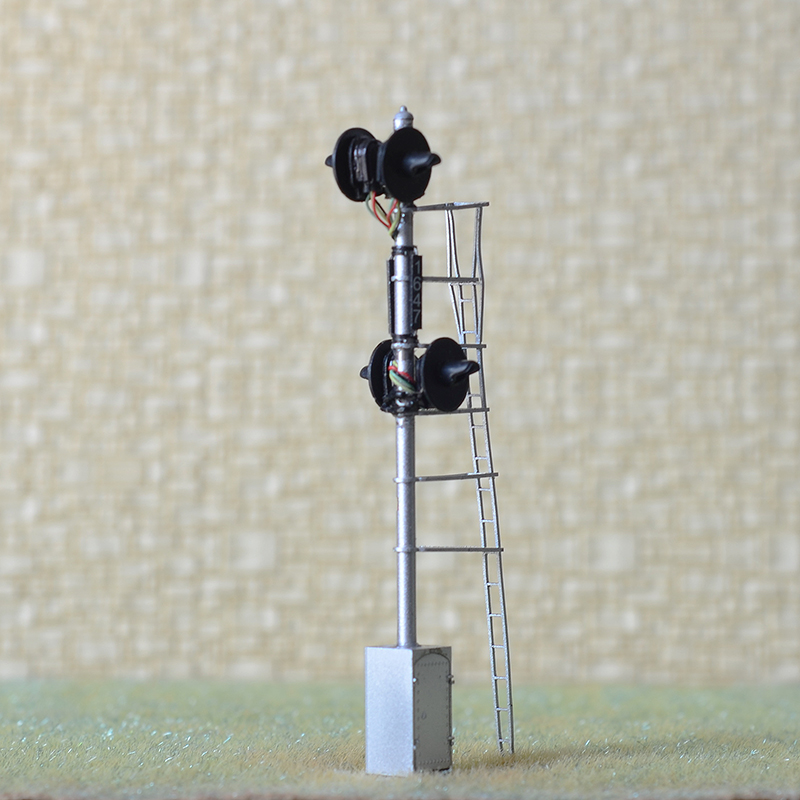

price for 1 complete signal ( common anode )







  • tri-colors SMD LEDs made

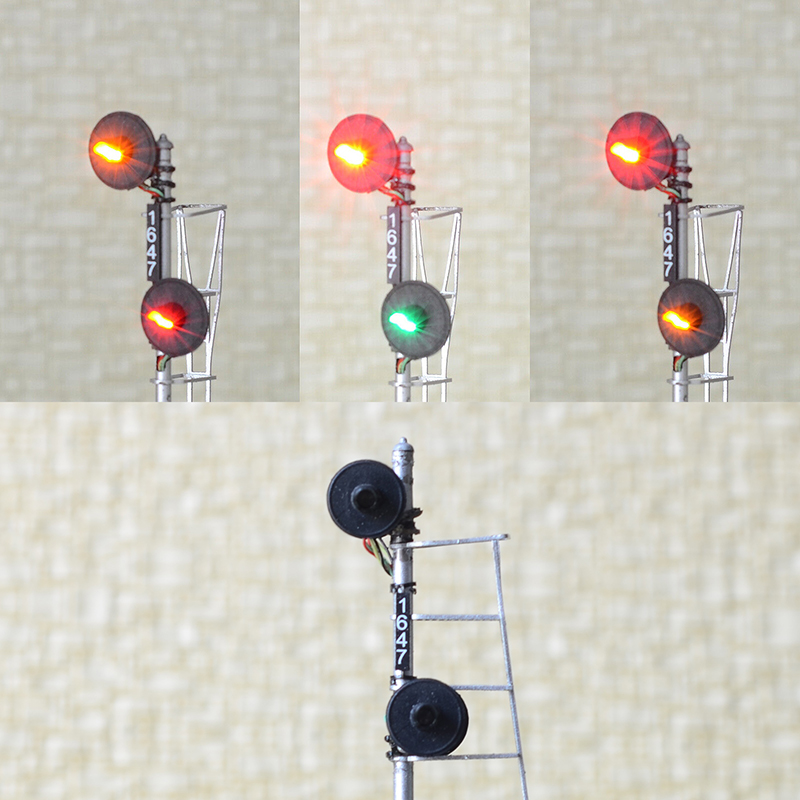

  • 4 targets, each target may show Red/Amber/Green light.
  • 4 wires for each target, the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal ), must wire 470 ohm 1/4W resistors with Green LED and 510 ohm 1/4W resistors with Red and Yellow LED if you need the green light shows along with the red or yellow light, or control them with my Master Board.

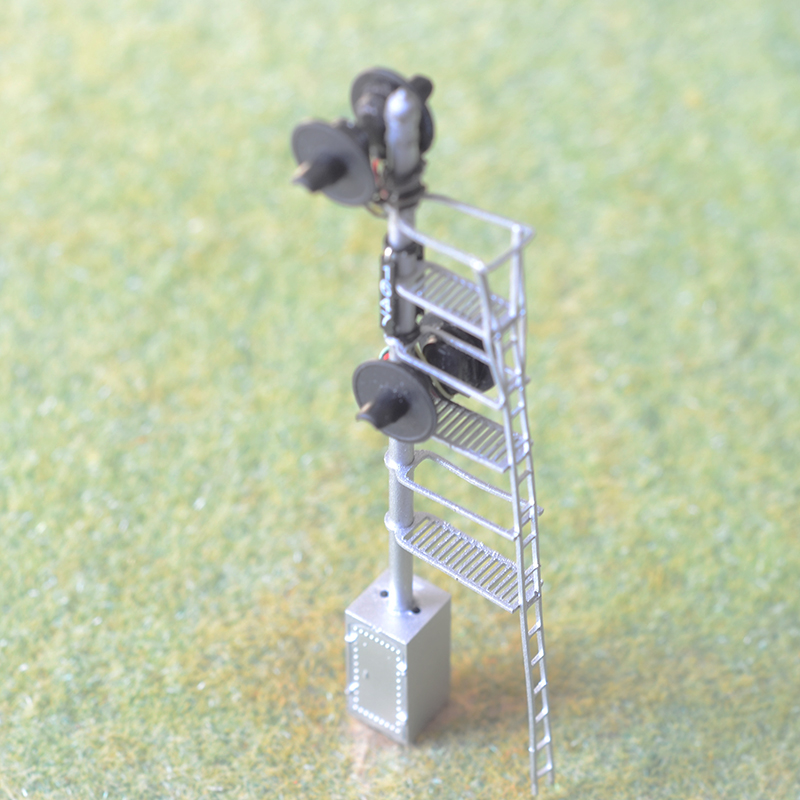

  • pole position: upper target on left side while lower target on right side ( default ), or please message me right after payment if have special requirements )
  • with thread base for easy installation

Specifications:

  • Brand: WeHonest Model.

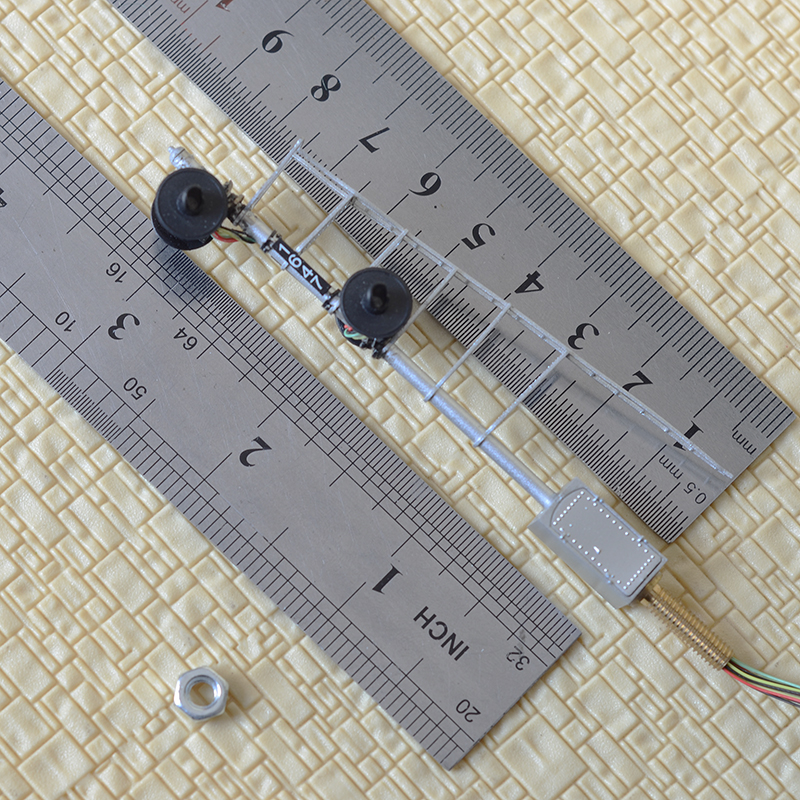

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: steel

Package included:

  • 1 complete common anode signal ( with box )
