1 x HO scale model railroad 3-colors searchlight signal LED metal 1 head #M00

1 x HO scale model railroad 3-colors searchlight signal LED metal 1 head #M00

Product Code: WH404512312788
Availability: 100

overview

price for 1 complete signal ( common anode )SMD LEDs madesingle target may shows Red/Amber/Green light.4 wires, the black wire is Common Anode wire, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal...
$17.53
price for 1 complete signal ( common anode )





  • SMD LEDs made

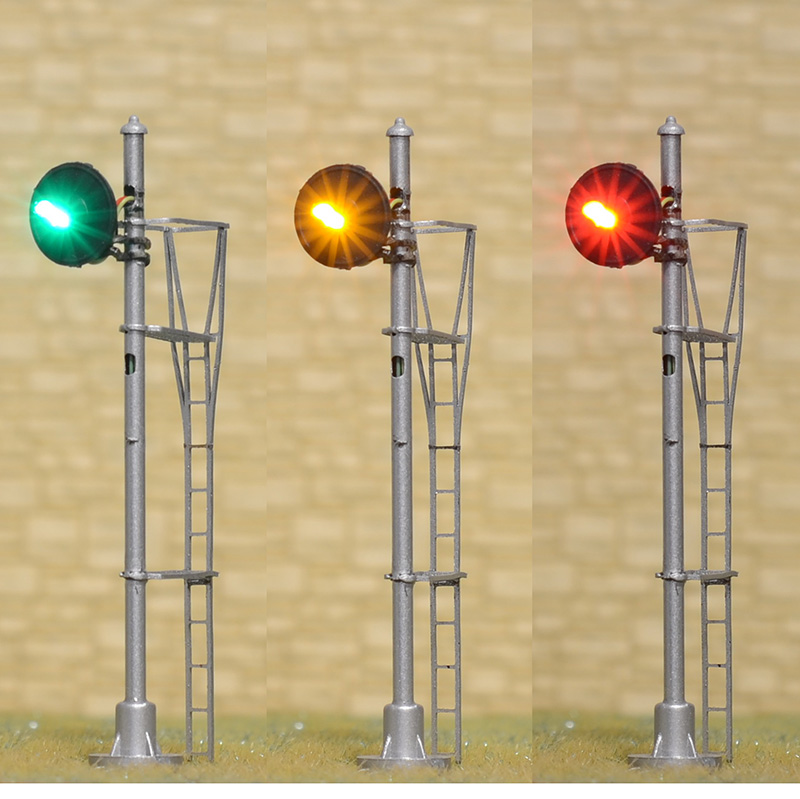

  • single target may shows Red/Amber/Green light.
  • 4 wires, the black wire is Common Anode wire, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal ).
  • targets position: on left side of the pole ( default ), or please message me right after payment if you need the right side one )

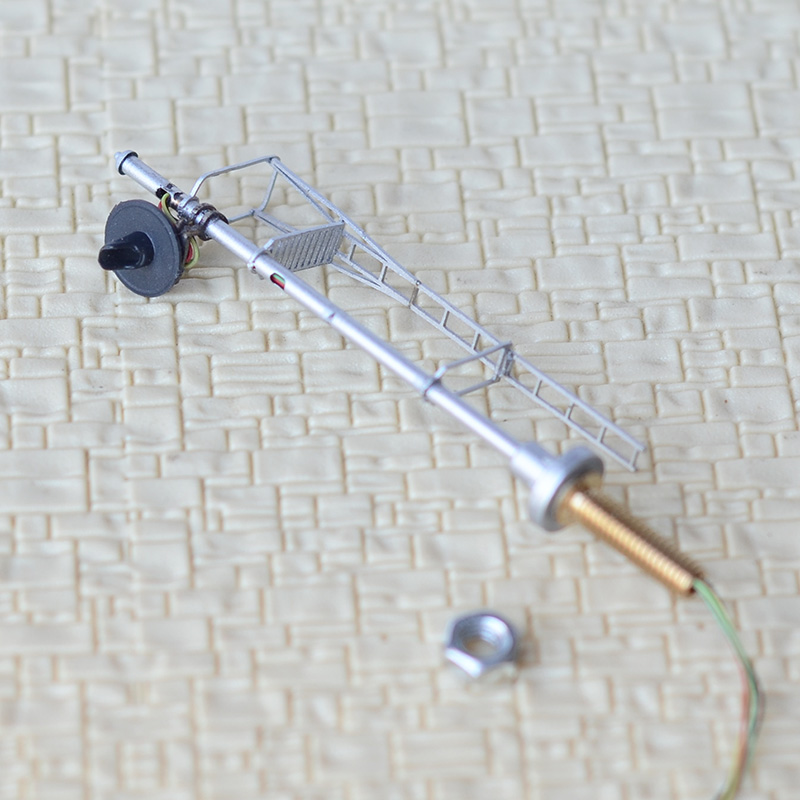

  • base style: thread base ( default ), must message me right after payment if need them with plat base.

Specifications:

  • Brand: WeHonest Model.

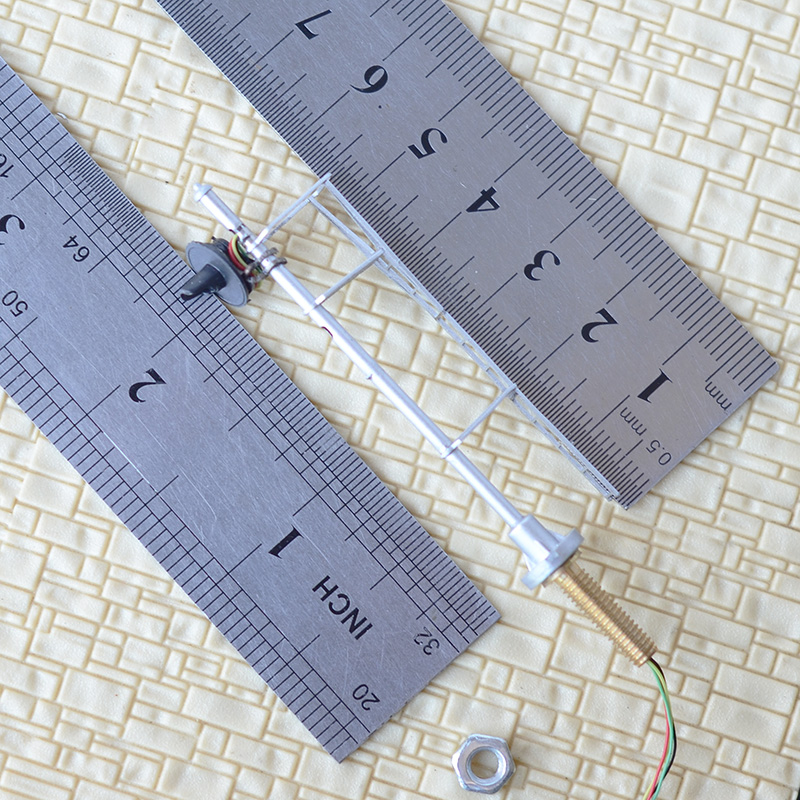

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: steel

Package included:

  • 1 complete common anode signal ( with box )
