1 x HO scale model railroad LED searchlight signal 3-colors 2 heads metal #M12

1 x HO scale model railroad LED searchlight signal 3-colors 2 heads metal #M12

Product Code: WH155790766673
Availability: 100

overview

price for 1 complete signal ( common anode )SMD LEDs made2 targets, each may shows Red/Amber/Green light.4 wires for each target, the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment if you need ...
$20.23
price for 1 complete signal ( common anode )




  • SMD LEDs made

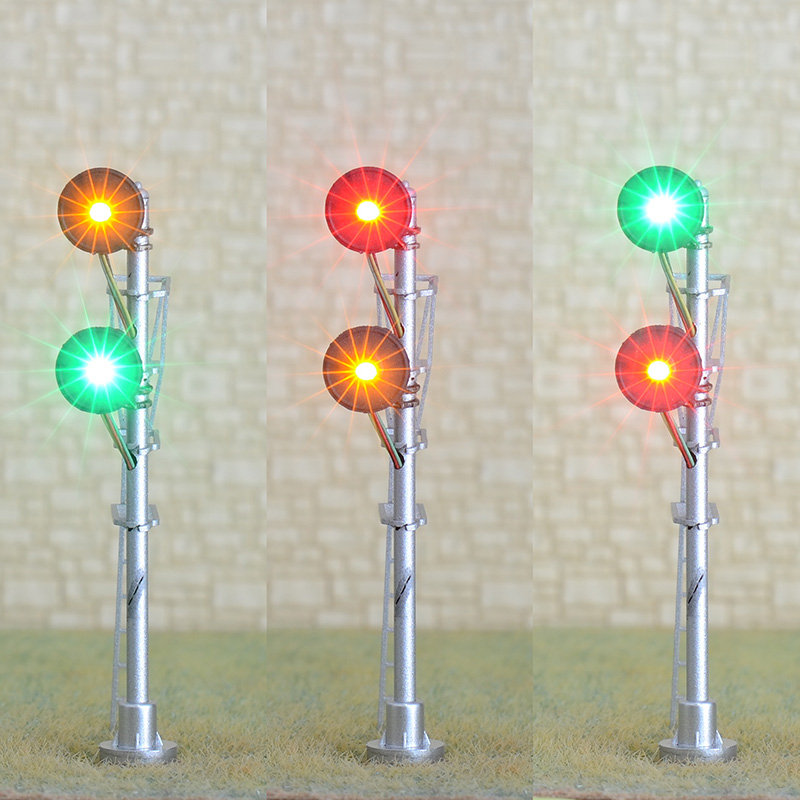

  • 2 targets, each may shows Red/Amber/Green light.
  • 4 wires for each target, the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal ), must wire 470 ohm 1/4W resistors with Green LED and 510 ohm 1/4W resistors with Red and Yellow LED if you need the green light shows along with the red or yellow light, or control them with my Master Board.

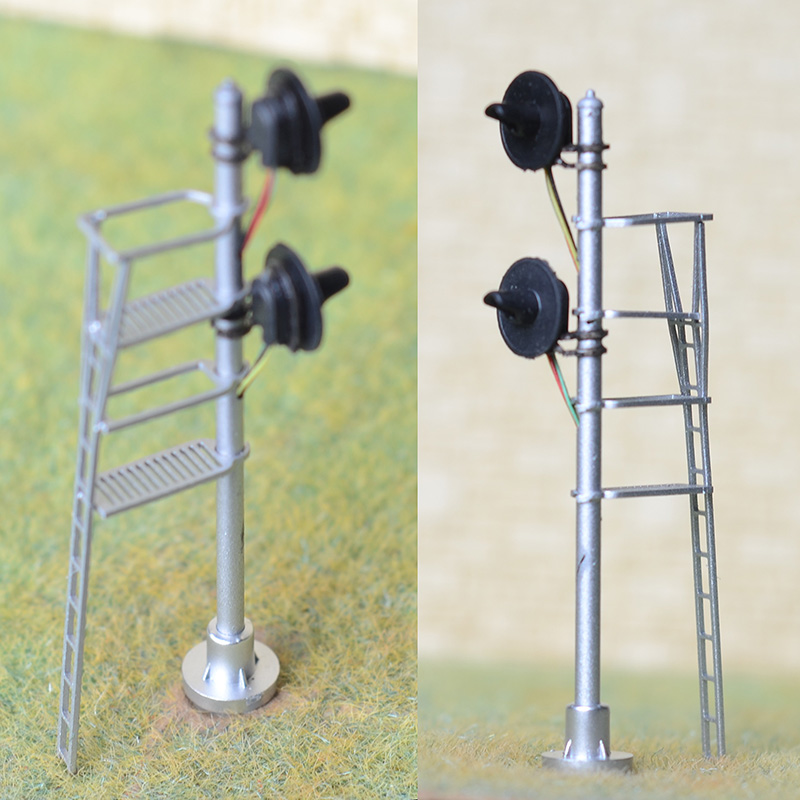

  • targets position: on left side ( default ), or please message me right after payment if you need the right side one )

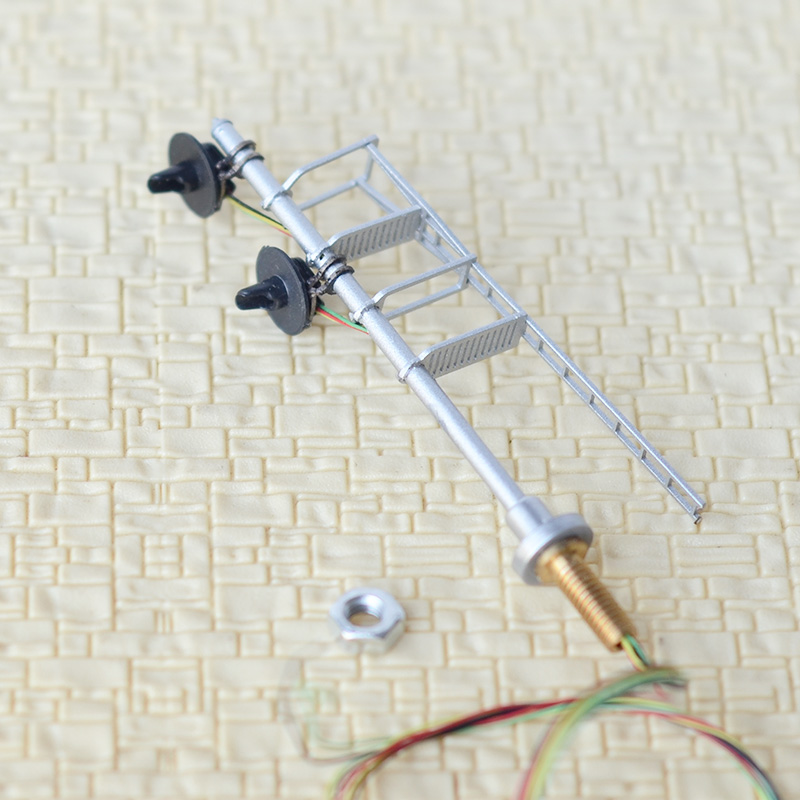

  • base style: thread base ( default ), must message me right after payment if need them with plat base.

Specifications:

  • Brand: WeHonest Model.

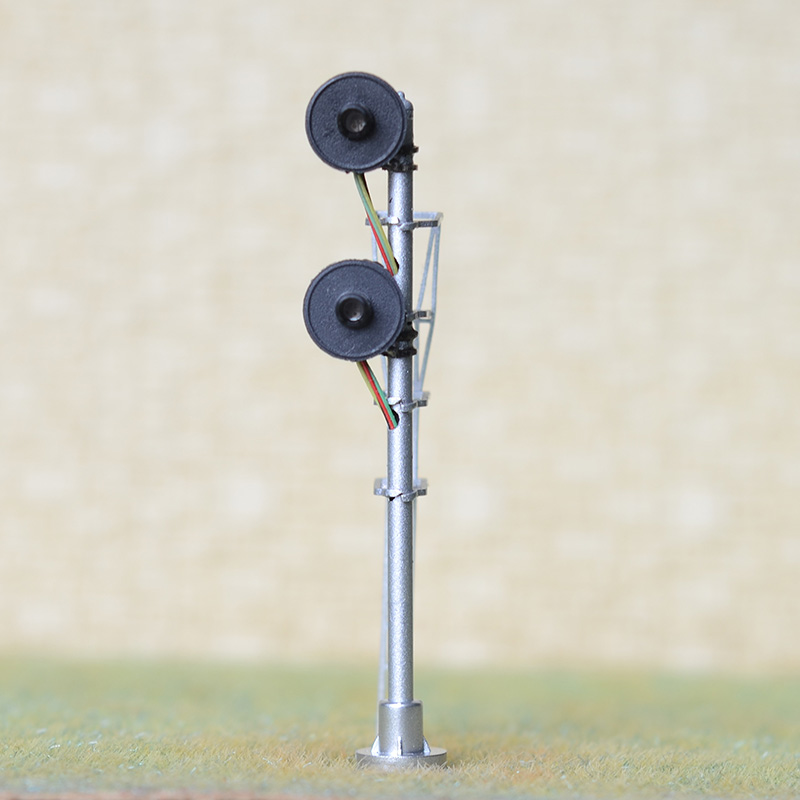

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: steel

Package included:

  • 1 complete common anode signal ( with box )
