1 x HO scale model railroad 3-colors searchlight signal metal 2 head opposite

1 x HO scale model railroad 3-colors searchlight signal metal 2 head opposite

Product Code: WH404902060945
Availability: 100

overview

price for 1 complete searchlight signal ( common anode )tri-colors SMD LEDs madeeach faceplate may show Red/Amber/Green light.the black wires are Common Anode wires, the color wires are cathode wires.message me right after payments if you need common...
$14.38
price for 1 complete searchlight signal ( common anode )




  • tri-colors SMD LEDs made

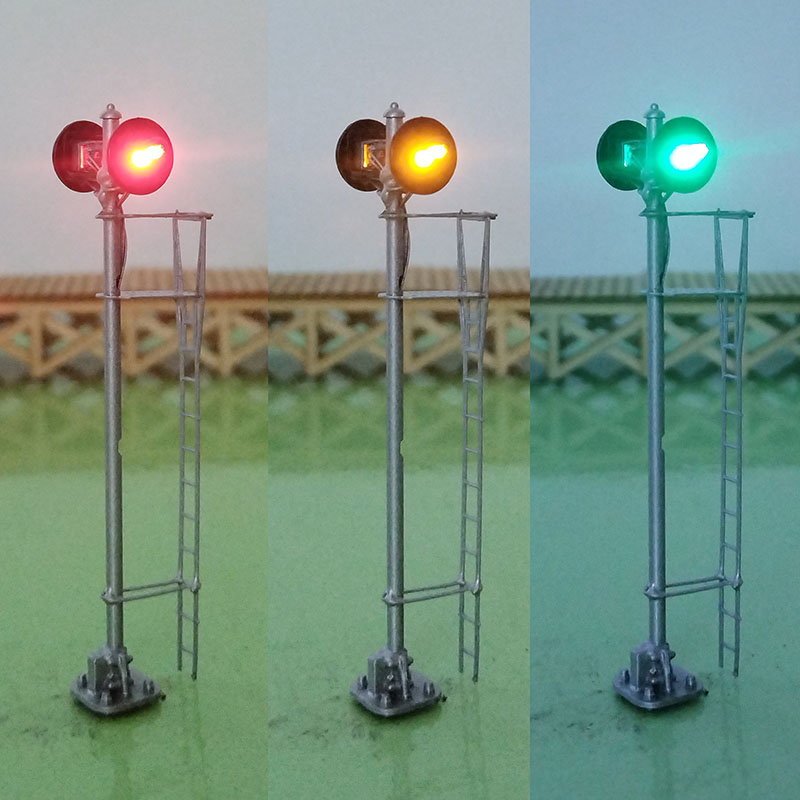

  • each faceplate may show Red/Amber/Green light.

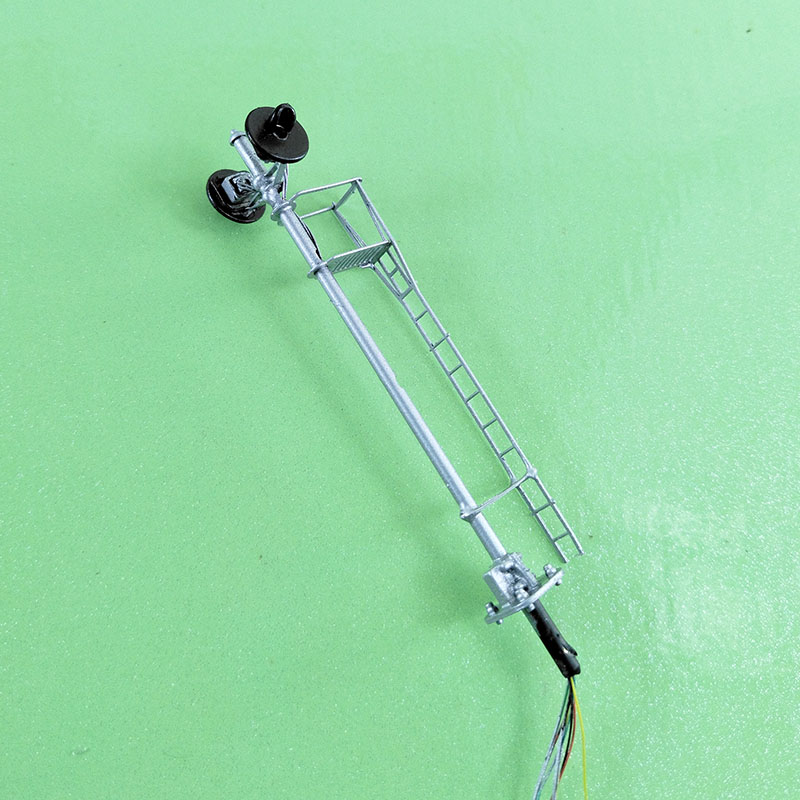

  • the black wires are Common Anode wires, the color wires are cathode wires.
  • message me right after payments if you need common cathode wiring.

Specifications:

  • Brand: WeHonest Model.

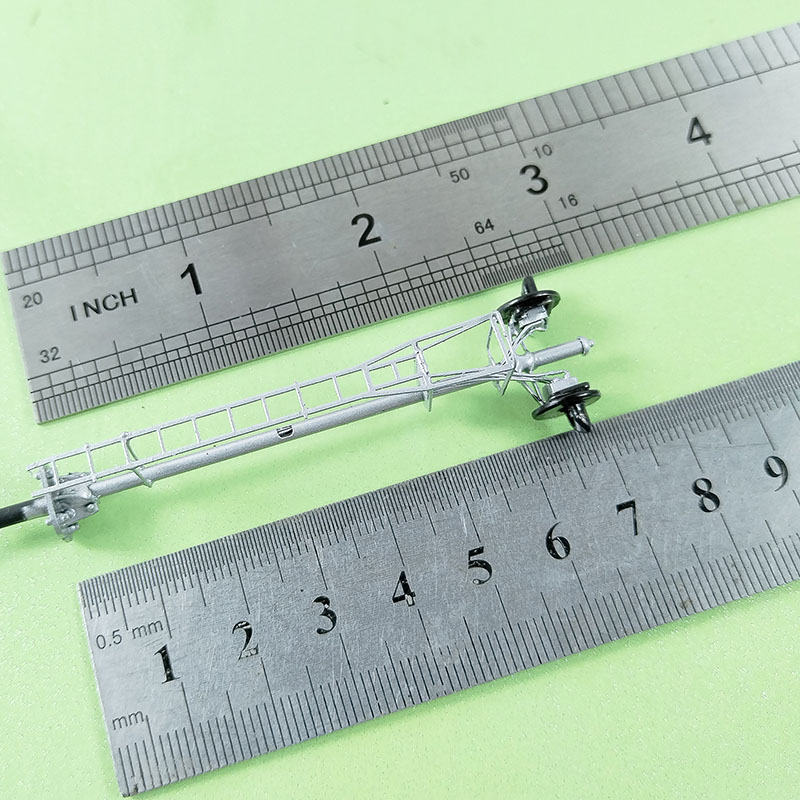

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire 620 ohm resistors with the black wires if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: steel

Package included:

  • 1 complete common anode signal ( default body color: silver, message me right after payments if you need other body color)
