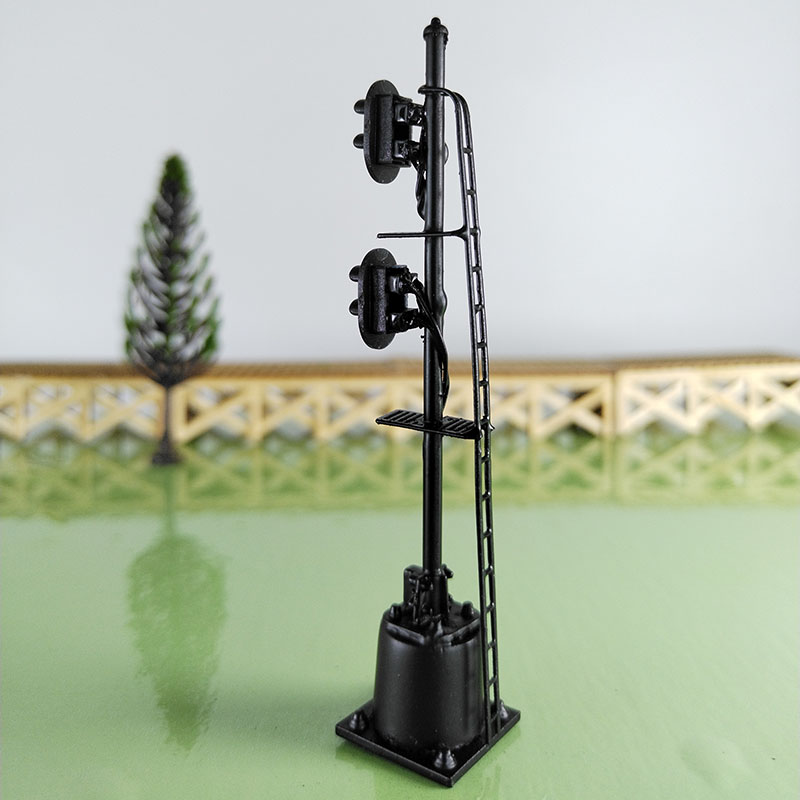

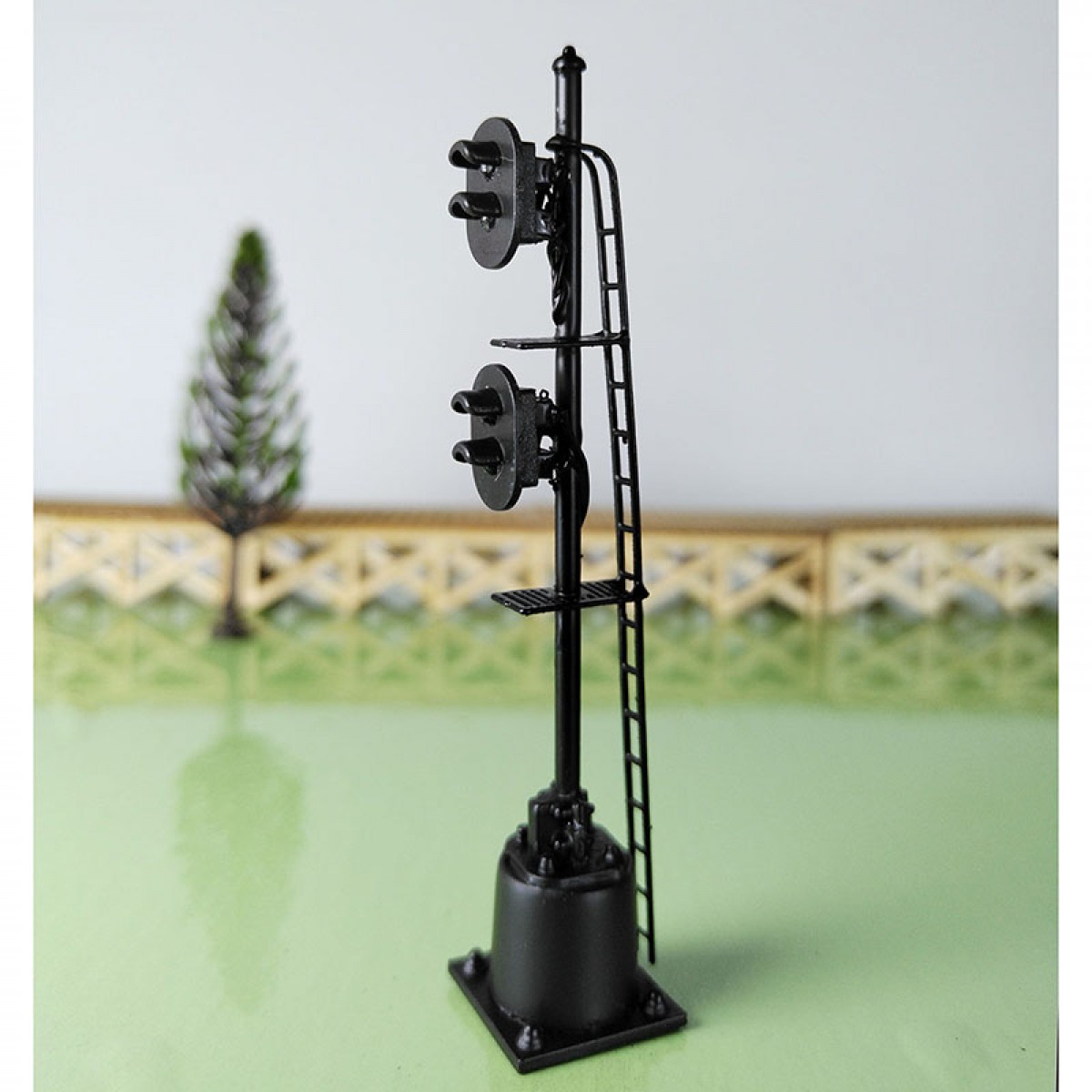

1 x HO scale model railroad 2 heads 2 aspects block signal LED made #K22SpBK

1 x HO scale model railroad 2 heads 2 aspects block signal LED made #K22SpBK

Product Code: WH404645910154
Availability: 100

overview

price for 1 complete signal ( common anode )2mm clear LEDs made2 targets showing Red/Green light.5 wires for each signal, the black wire is Common Anode wire, the color wires are cathode wires. ( message me right after payment if you need Common Cath...
$12.13
price for 1 complete signal ( common anode )



  • 2mm clear LEDs made

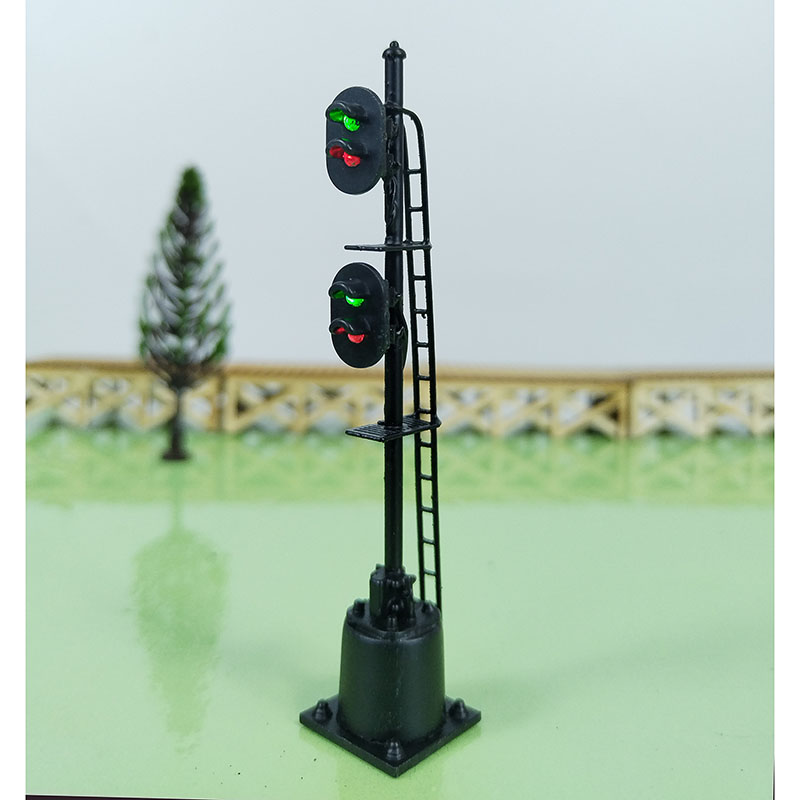

  • 2 targets showing Red/Green light.
  • 5 wires for each signal, the black wire is Common Anode wire, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal )
  • target position: in the middle ( default ), or please message me right after payment if you need the ladder on left or right side )

Specifications:

  • Brand: WeHonest Model.

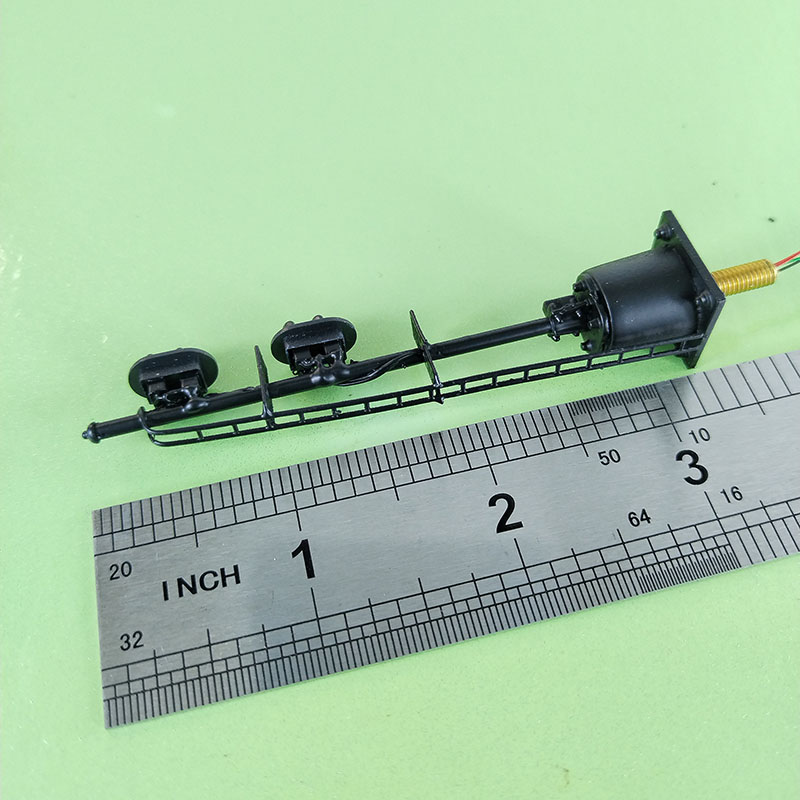

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: brass

Package included:

  • 1 x complete common anode signal
  • 1 x 620 ohm resistor for 12V/16V DC use
