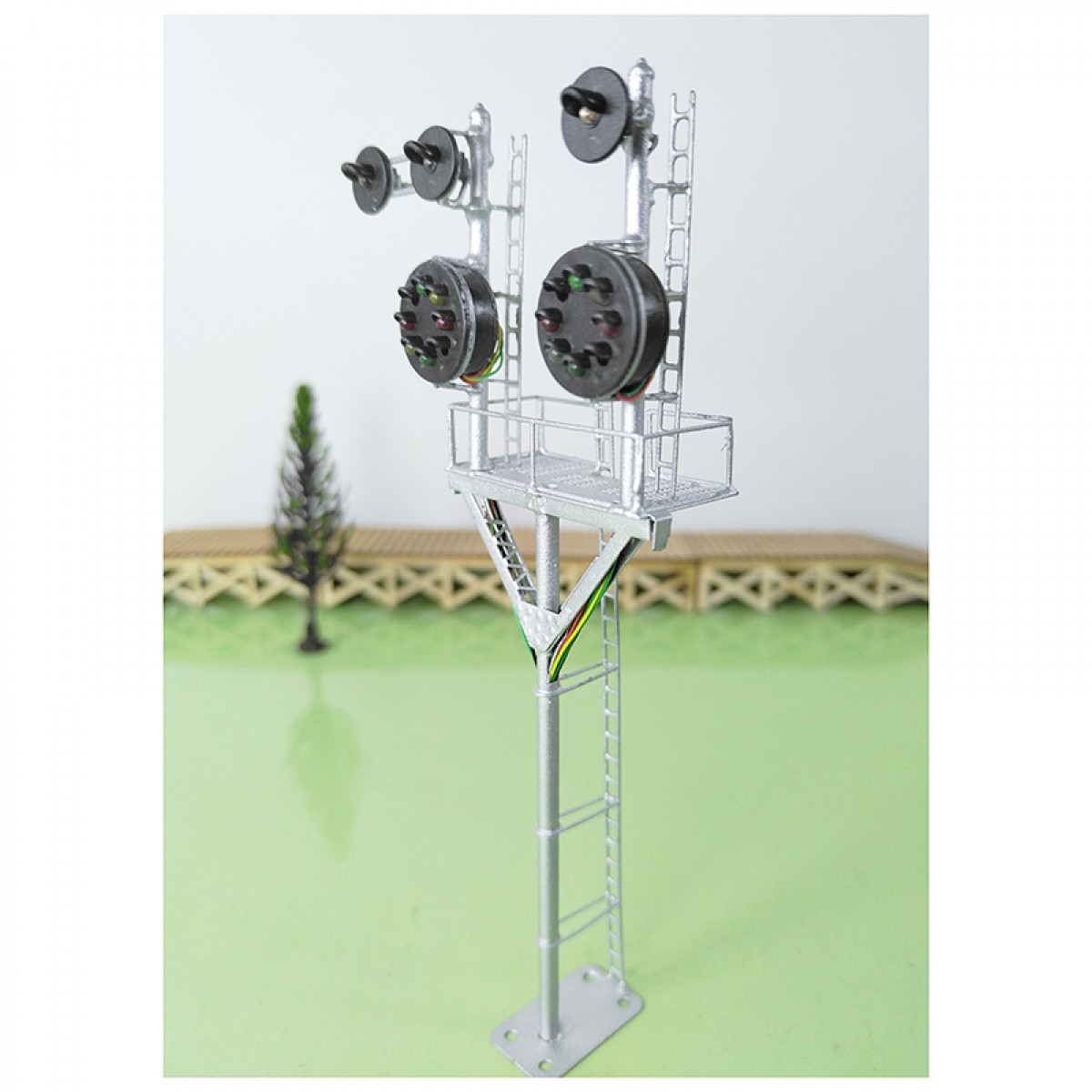

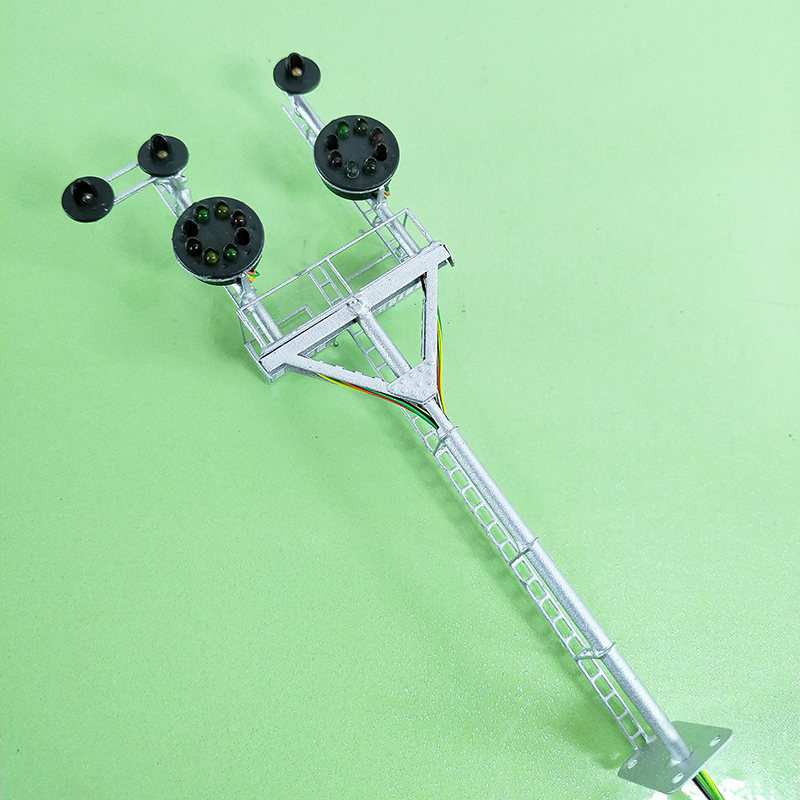

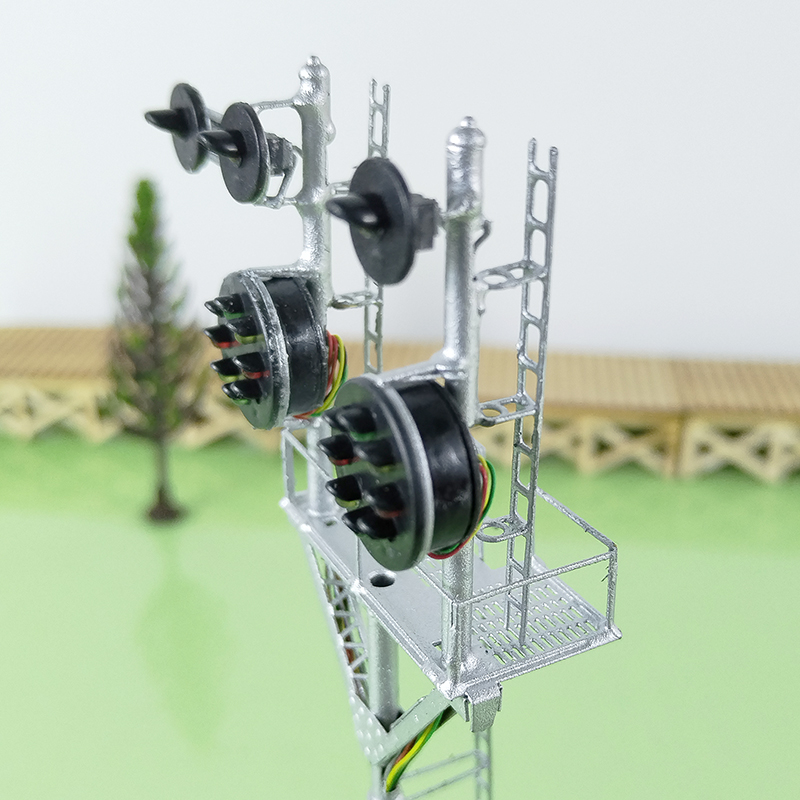

1 x HO scale model railroad tower CPL signal B&O goalpost bracket #LU11RU01

1 x HO scale model railroad tower CPL signal B&O goalpost bracket #LU11RU01

0 review(s) | Write a review
Product Code: WH404937682349
Availability: 100

overview

price for 1 complete signal ( common anode )2mm LEDs mademiddle dial target may show Green/Amber/Red light, upper targets may show warm white.the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment ...
$62.98
BUY AT AMAZON
price for 1 complete signal ( common anode )





  • 2mm LEDs made

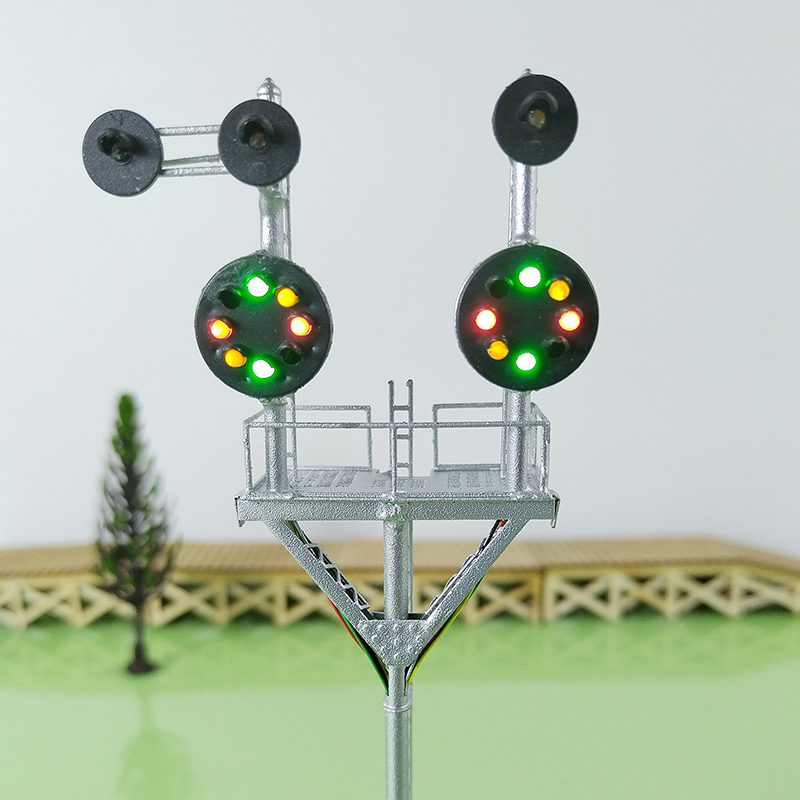

  • middle dial target may show Green/Amber/Red light, upper targets may show warm white.
  • the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal ), must wire 470 ohm 1/4W resistors with Green LED, warm white LED and 510 ohm 1/4W resistors with Red and Yellow LED if you need the green light shows along with the red or yellow light, or control them with my Master Board.

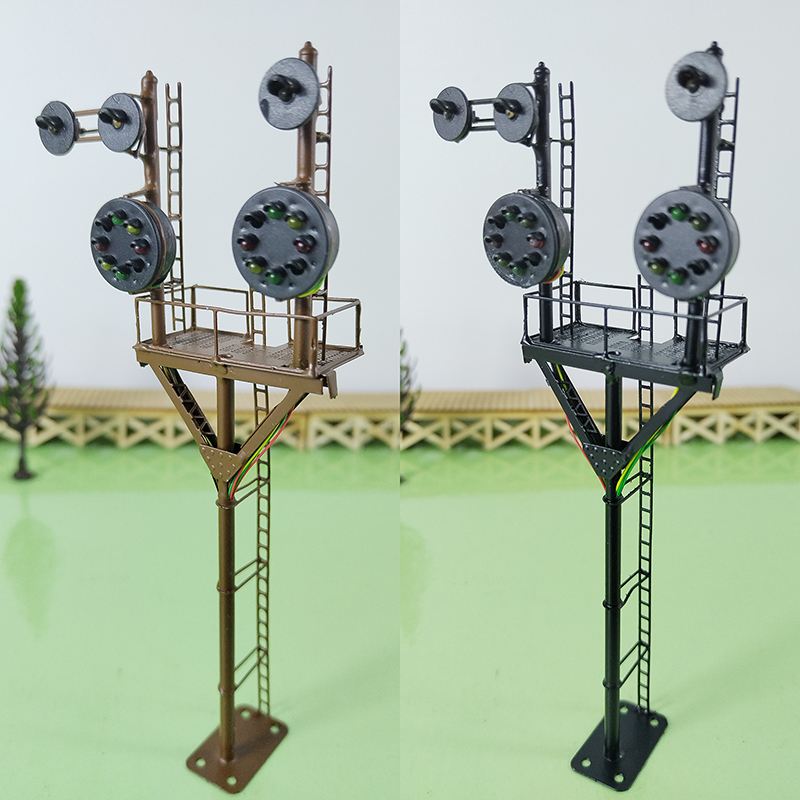

  • body color: silver ( default ), or please message me right after payment if you need it in black or brown.

Specifications:

  • Brand: WeHonest Model.

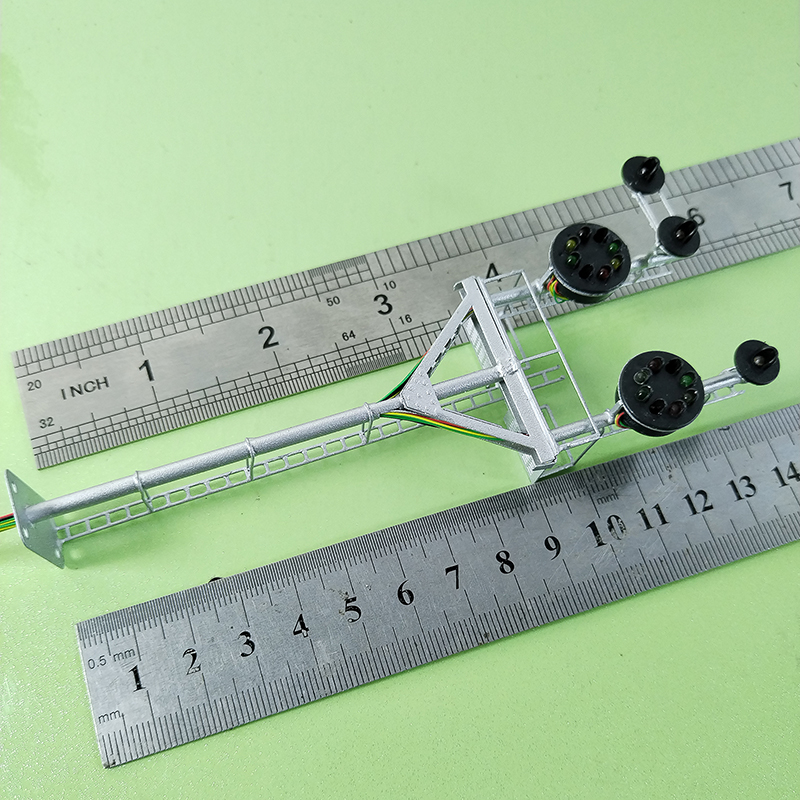

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: steel

Package included:

  • 1 complete common anode signal
