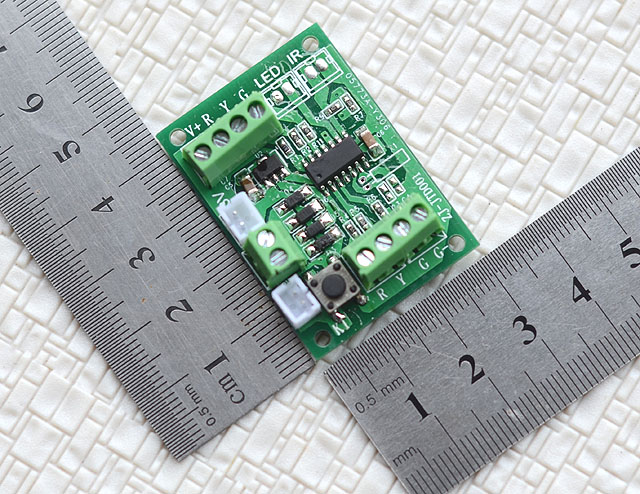

1 x Model Railway Traffic signal Light Controller Circuit board N gauge OO Gauge

Product Code: WH401076156798

Availability: 100

overview

Price is for 1 pcsTraffic Lights Controller Circuit BoardSuitable for all gauge common anode or common cathode signals the signals will be lighted by the following sequence when the switch is turned on. please follow the wiring within the photos,...

$13.05

Qty

BUY AT AMAZON

Description
Reviews (0)

Price is for 1 pcs
Traffic Lights Controller Circuit Board
Suitable for all gauge
common anode or common cathode signals

the signals will be lighted by the following sequence when the switch is turned on.

please follow the wiring within the photos, no further instruction paper.

Parameters

Input Voltage: 4V to 20V AC or DC
or 3V DC ( 3V Cell battery or 2 x AA batteries )
unlimited input current.
Output Voltage: 3V DC

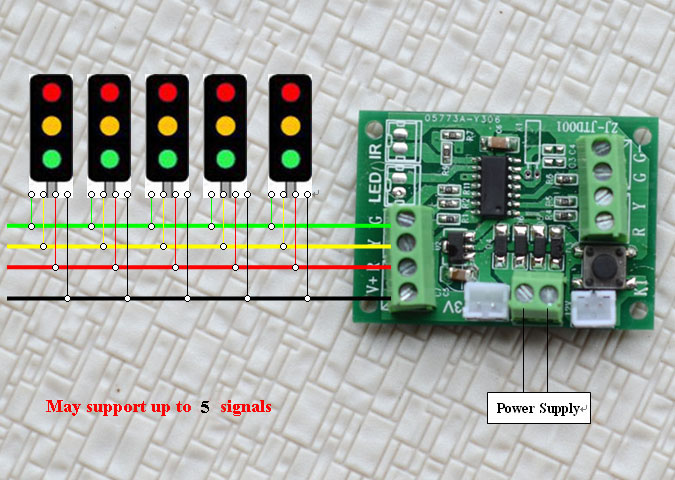

Max. Output Current: 150mA ( may support 5 signals in parallel )
Output Current will be limited automatically if wire less than 5 signals, you may just use one signal on it.

PRODUCT DESCRIPTION

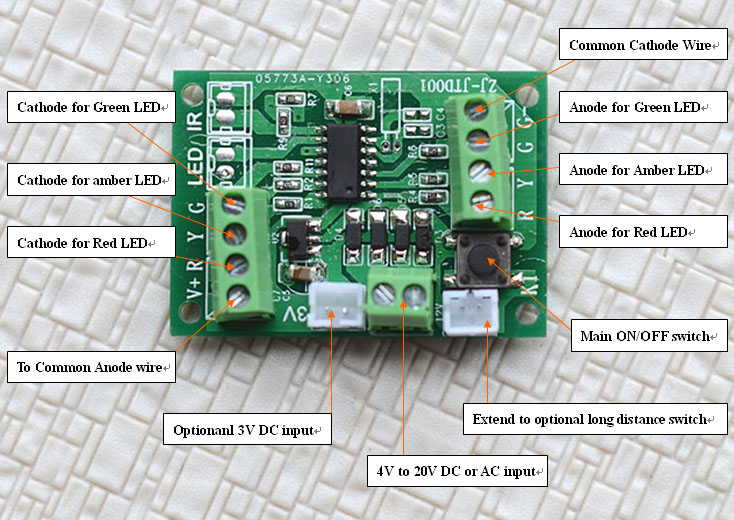

With Common Anode an Common Cathode output and fit different signals.

Click Here To Buy the OO gauge Traffic Signals

Click Here To Buy the N gauge Traffic Signals

Extending usage 1:

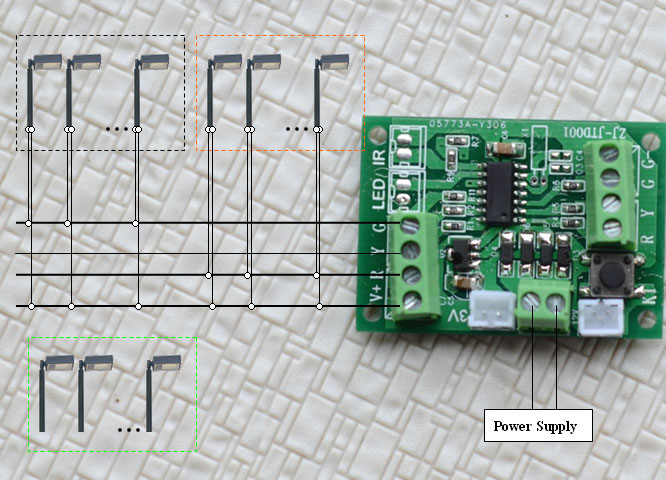

Wire up to 3 groups of LED lights to the board and let them be lighted up by sequence, the lights will be turned on and off by the sequence, give them some break time to time and it's good for them, and your layout will be more vivid.

1 to 10 lights per group and can support up to 20 LED lights, no need of resistors (when using the R and Y output, the group can be 5 lights only as R and Y have the period to light them at the same time)

Extending usage 2:

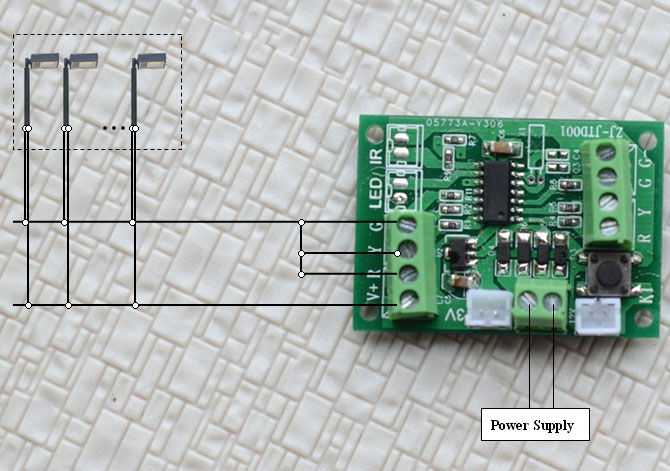

Use as a 3V DC power supply if you don't have the 3V transformer for the LED lights, no need of resistors, may support 1 to 10 led lights at the same time, output current will be self adapted, the lights will keep lighting with the following wiring:
