5 x twisted wired blue #0603 SMD LED street building Lights Pre-soldered lamp

Product Code: WH153035753303

Availability: 100

overview

Buy It Now Price is for 5 pcstwisted wired #0603 SMD LEDswith blue Light using 0.28mm ultra slim teflon coated wiresClick Here To Buy the extending wires with connectorsCharacteristic SMD LED size: (1.60x0.80mm)Forward voltage:2.8V~3.4V Forward curr...

$3.60

Qty

BUY AT AMAZON

Description
Reviews (0)

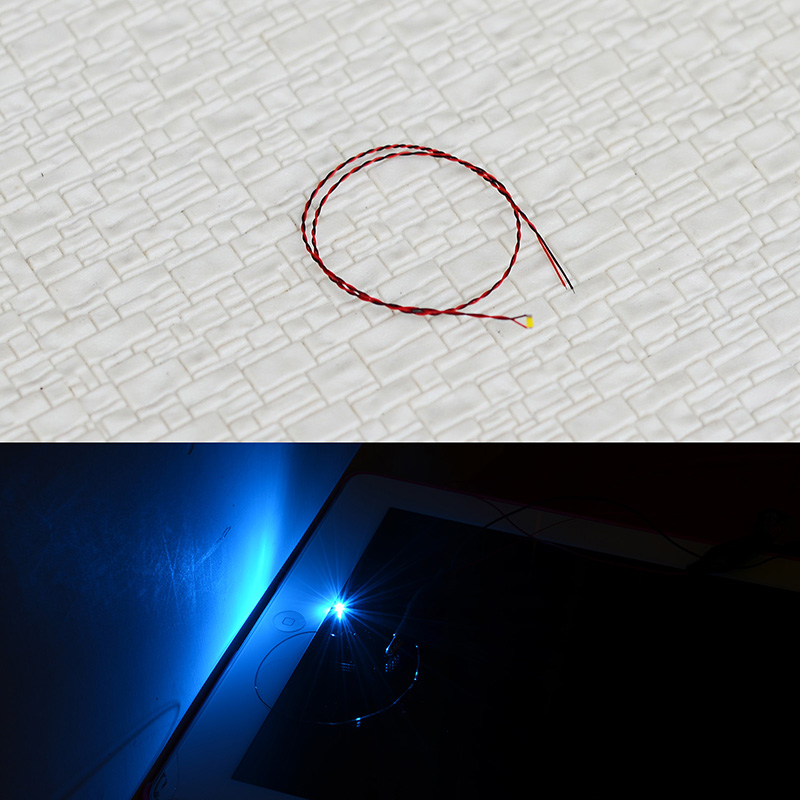

Buy It Now Price is for 5 pcs
twisted wired #0603 SMD LEDs
with blue Light
using 0.28mm ultra slim teflon coated wires

Red wire is positive and black wire is negative

The wires are very slim and your distributor can't hold them, solder pins to the lead wires may help.

Click Here To Buy the extending wires with connectors

Characteristic

SMD LED size: (1.60x0.80mm)
Forward voltage:2.8V~3.4V
Forward current (typ/max): 15mA/20mA.
Lead Wires' Lenth = 15cm
Brand new

PRODUCT DESCRIPTION

Use these LEDs to Light your building, bridge etc...
Package includes:

5 Pre-soldered with micro litz wired leads SMD Led 0603.
5 resistors (not pre-soldered) for 9~18V operation.
